PaddleVision
Precision Pickleball Paddle Testing
Measure total spin rate and Pickleball Coefficient of Restitution (PBCoR) with automated accuracy. High-speed dual-camera imaging with advanced motion analysis algorithms deliver precise measurements without manual complexity. Standards-compliant testing that accelerates your time to market and ensures manufacturing consistency.
Upcoming Event
PaddleVision Webinar
James Monnie
Application Engineer
- Friday, Jan 30
- 11AM PDT/2PM EDT
- Languages: English
Key Features
Standards-Compliant
Meet industry standards and accelerate your time to market with automated compliance testing and reports ready to export and send for certification.
Automated Workflow
Pre-configured workflows with point-and-shoot capture, automated analysis, and instant reporting. Streamlined testing that delivers consistent, repeatable measurements.
Accurate Data
Sub-millimeter calibration, sub-pixel tracking, and ±1.93 RPM total spin precision ensure QA and manufacturing consistency.
Measurements up to 5000 RPM with full 6DoF analysis.
Quick Results
Capture → Auto-Process → Export → Innovate.
Condensed, streamlined data with automatic export delivers actionable insights in minutes.
Portable & Easy to Transport
Compact dual-camera system with custom transport cases and integrated wheels. Designed for single-person transport between facilities or testing locations.
How It Works:
Precision Measurement Made Simple

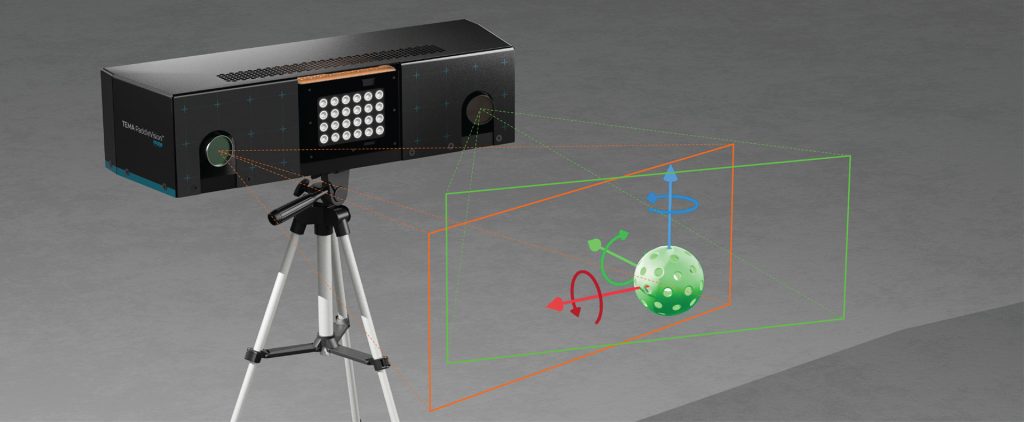

PaddleVision uses a compact dual-camera embedded system with built-in lighting to automatically capture and analyze ball movement and rotation during paddle testing, powered by TEMA Paddle.
The portable system delivers instant results with spin rate and PBCoR measurements. The entire system is manageable for single-person transport, and custom transport cases with wheels make it easy to move between testing locations.
Simple Workflow:
- Position paddle and ball trajectory within the measurement volume. Launch the ball.
- The system triggers automatically and captures ball-paddle interaction with high-speed dual-camera imaging.

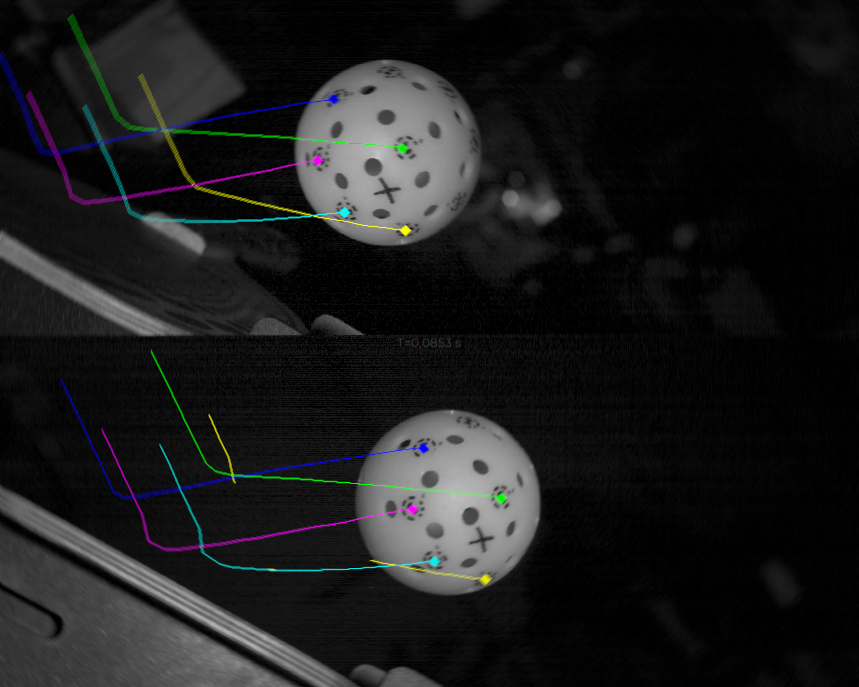

- Automated analysis processes ball movement and rotation with 6DoF precision, analyzing both ball position and orientation.
- Get fast results with spin rate and PBCoR measurements.
- Export data in multiple formats (PDF, CSV) for further analysis.
- The software is instantly ready to analyze the next ball.
Advanced Capabilities
- Automated calibration delivers sub-millimeter precision in under 60 seconds.
- Sub-pixel tracking accuracy captures every ball movement throughout trajectory.
- Full six degrees of freedom analysis provides complete motion insight.
- Measurement precision: ±1.93 RPM, up to 5000 RPM maximum.
Key Measurements

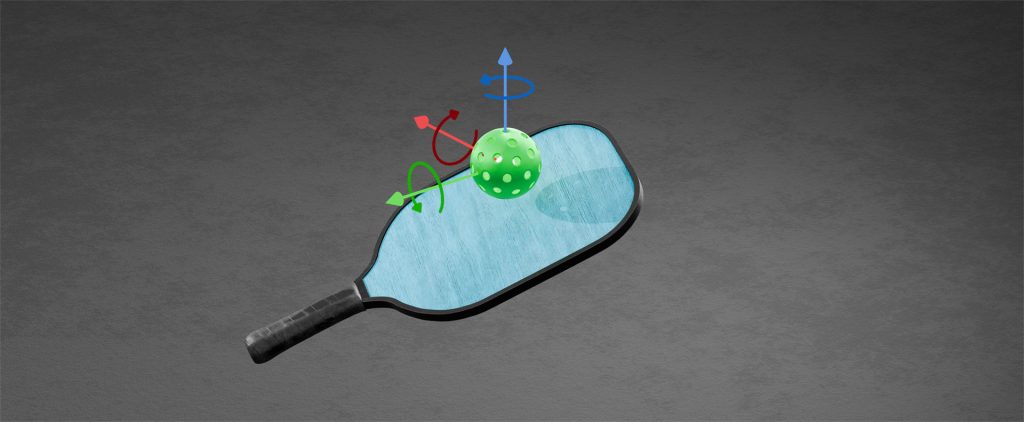

Total Spin Rate (RPM)
Complete rotation measurement during paddle ball interaction.
- Precision: ±1.93 RPM
- Maximum: 5000 RPM
- Full 6DoF analysis with angular velocity.
Restitution coefficient (PBCoR)
Energy transfer efficiency between paddle and ball.
- Impact dynamics measurement.
- Velocity analysis with ±0.0183 mph precision.
Advanced Diagnostics*
- Surface strain analysis using Digital Image Correlation (DIC).
- Deformation measurements.
- Material optimization insights.
*Advanced Diagnostics package offered separately
Why Choose PaddleVision?
Accelerate Time to Market
Standards-compliant testing that does not slow you down. Automated workflows mean faster product development cycles and quicker time to market for new paddle designs.
Ensure Manufacturing Consistency
Accurate, repeatable data ensures your QA processes catch inconsistencies before they reach customers. Maintain quality standards across every batch with consistent measurement methodology.
Drive Product Improvement
Automated workflow frees your R&D team to focus on innovation, not manual testing. Quick, actionable results enable rapid iteration and continuous product improvement.
Quick, Actionable Results
Condensed, streamlined data with automatic export means you get insights immediately. Pre-configured report template deliver velocity, RPM, Coefficient of Restitution, and spin metrics in easy-to-read formats.
Portable & Easy to Transport
Compact dual-camera system designed for mobility. Custom transport cases with integrated wheels make it easy to move the system between facilities or testing locations.
Comparison
Manual Testing Methods | PaddleVision |
|---|---|
| Hours per test | Minutes per test |
| Subjective interpretation | Automated 6DoF analysis |
| Variable results | Consistent methodology |
| Manual data entry | Automatic export |
| Standards compliance complexity | Built-in compliance |
| High training requirements | Intuitive workflow |
Fixed location testing | Portable system |
Built for Pickleball Paddle Manufacturers
Designed for R&D managers, project engineers, and technicians in paddle manufacturing companies who need reliable, repeatable testing solutions. With simple, standards-compliant measurements and actionable insights throughout development, PaddleVision helps manufacturers optimize products for both performance and cost.
Choosing the Right PaddleVision Configuration
PaddleVision System
Embedded hardware plus Accessory Kit plus TEMA Paddle software.
Best for:
- Facilities seeking a complete, turn-key, ready-to-use solution.
- New testing operations requiring immediate deployment.
- Teams that want maximum convenience and standards compliance out of the box.
What is included:
- Embedded system box with integrated dual cameras and lighting.
- Accessory Kit with tripod, tripod head, digital level, calibration kit.
- Laptop with TEMA Paddle installed and licensed.
- Custom transport cases with wheels for hardware and accessories.
- All required power supplies and quick start guide.
TEMA Paddle Software
Best for:
- Facilities that already own compatible hardware and accessories.
- Organizations seeking to upgrade their testing software only.
- Adding PaddleVision analysis to existing camera setups.
What is included:
- TEMA Paddle software for Windows (license included).
- Software quick start and support documentation.
NOTE: This package does not include embedded camera hardware or the accessory kit. The Accessory Kit is available separately.
PaddleVision Accessory Kit
Best for:
- Upgrading an existing system lacking professional positioning tools.
- Ensuring maximum measurement precision and repeatable results.
- Accommodating different paddle sizes and alignments.
What is included:
- Professional-grade tripod and precision tripod head.
- Digital level for accurate alignment.
- Camera calibration kit.
- Custom accessory transport case
Ready to Get Started with PaddleVision?
Get a personalized quote for your specific testing needs. Our team will provide detailed pricing for the base package and accessory options that best fit your facility.
What to expect:
- Response within 24 hours.
- Expert consultation on system configuration.
- No obligation, free quote.
What is in the Box

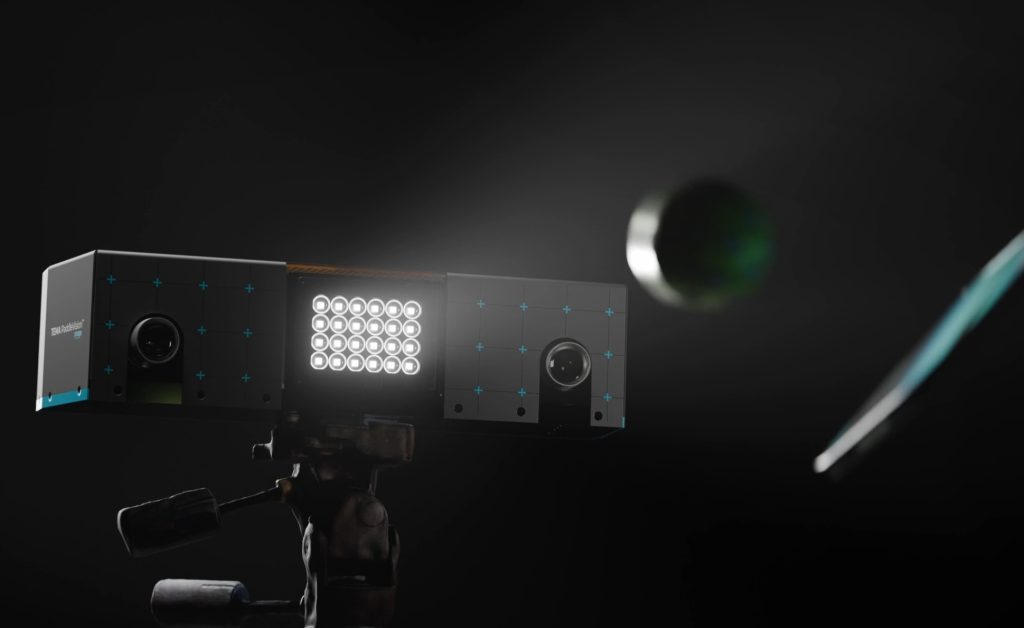

PaddleVision Base Package
Base package contents:
- PaddleVision unit with embedded light source, cameras, lenses, and trigger.
- External trigger with mounts.
- Power supplies for light system and cameras.
- Laptop with camera adapters (2x) and TEMA Paddle installed.
- Transport case with padding and wheels.
- Quick start guide.
A complete turn-key solution ready for immediate deployment. The embedded system is compact and manageable for single-person transport. Unbox, position, and begin testing.

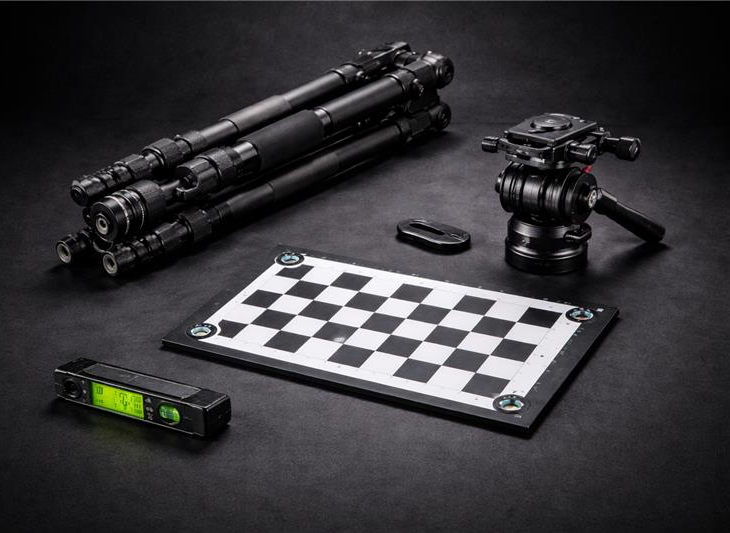

PaddleVision Accessory Kit
Accessory kit contents:
- Professional-grade tripod and tripod head.
- Digital level.
- Calibration wand.
- Accessory kit transport case.
Enhance your PaddleVision system with accessories that deliver optimal performance and convenience, packaged in a dedicated case for easy transport and storage.
Request a Quote
Complete the form to receive a personalized quote for your testing needs.
Replace this area with Elementor form widget containing fields: Name, Company, Role, Email, Phone, Package Interest, Primary Use Case, Timeline, Additional Requirements.
Built on Scientific Rigor and Technical Excellence
PaddleVision is backed by research and robust measurement methodologies. Our approach uses advanced 6DoF pose analysis and geodesic rotation calculations, providing superior accuracy compared to traditional optical RPM methods.
Technical Specifications
- PaddleVision Hardware Spec Sheet – PDF download.
- TEMA Paddle Software Spec Sheet – PDF download.
Application Notes
- 6DoF pose geodesic rotation versus basic tracking comparison.
- Accuracy and precision validation data and methodology.
Research Papers
Download research on the mathematical foundations of our measurement technology, including geodesic rotation calculation from six degrees of freedom poses.
